Moving all your data, 9TB edition

At GitLab B.V. we are working on an infrastructure upgrade to give more CPU

power and storage space to GitLab.com. (We are currently still running on a

single server.) As a

part of this upgrade we wanted to move gitlab.com from our own dedicated

hardware servers to an AWS data center 400 kilometers away. In this blog post

I will tell you how I did that and what challenges I had to overcome. An epic

adventure of hand-rolled network tunnels, advanced DRBD features and streaming

9TB of data through SSH pipes!

What did I have to move?

In our current setup we run a stock GitLab Enterprise Edition omnibus package,

with a single big filesystem mounted at /var/opt/gitlab. This

filesystem holds all the user data hosted on gitlab.com: Postgres and Redis

database files, user uploads, and a lot of Git repositories. All I had to do

to move this data to AWS is to move the files on this filesystem. Sounds simple

enough, does it not?

So do we move the files, or the filesystem itself? This is an easy question to

answer. Moving the files using something like Rsync is not an option because it

is just too slow. We do file-based backups every week where we take a block

device snapshot, mount the snapshot and send it across with Rsync. That

currently takes over 24 hours, and 24 hours of downtime while we move

gitlab.com is not a nice idea. Now you might ask: what if you Rsync once to

prepare, take the server offline, and then do a quick Rsync just to catch up?

That would still take hours just for Rsync to walk through all the files and

directories on disk. No good.

We have faced and solved this same problem in the past when the amount of data

was 5 times smaller. (Rsync was not an option even then.) What I did at that

time was to use DRBD to move not just the files themselves, but the whole

filesystem they sit on. This time around DRBD again seemed like the best

solution for us. It is not the fastest solution to move a lot of data, but what

is great about it is that you can keep using the filesystem while the data is

being moved, and changes will get synchronized continuously. No downtime for

our users! (Except maybe 5 minutes at the start to set up the sync.)

What is DRBD?

DRBD is a system that can create a virtual hard drive

(block device) on a Linux computer that gets mirrored across a network

connection to a second Linux computer. Both computers give a 'real' hard drive

to DRBD, and DRBD keeps the contents of the real hard drive the same across

both computers via the network. One of the two computers gets a virtual hard

drive from DRBD, which shows the contents of the real hard drive underneath. If

your first computer crashes, you can 'plug in' the virtual hard drive on the

second computer in a matter of seconds, and all your data will still be there

because DRBD kept the 'real' hard drives in sync for you. You can even have the

two computers that are linked by DRBD sit in different buildings, or on

different continents. Up until our move to AWS, we were using DRBD to protect

against hardware failure on the server that runs gitlab.com: if such a failure

would happen, we could just plug in the virtual hard drive with the user data

into our stand-by server. In our new data center, the hosting provider (Amazon

Web Services) has their own solution for plugging virtual hard drives in and

out called Elastic Block Storage, so we are no longer using DRBD as a virtual

hard drive. From an availability standpoint this is not better or worse, but

using EBS drives does make it a lot easier for us to make backups because now

we can just store snapshots (no more Rsync).

Using DRBD for a data migration

Although DRBD is not really made for this purpose, I felt confident using DRBD

for the migration because I had done it before for a migration between data

centers. At that time we were moving across the Atlantic Ocean; this time we

would only be moving from the Netherlands to Germany. However, the last time

we used DRBD only as a one-off tool. In our pre-migration setup, we were

already using DRBD to replicate the filesystem between two servers in the same

rack. DRBD only lets you share a virtual hard drive between two computers, so

how do we now send the data to a third computer in the new data center?

Luckily, DRBD actually has a trick up its sleeve to deal with this, called

'stacked resources'. This means that our old servers ('linus' and 'monty')

would share a virtual hard drive called 'drbd0', and that whoever of the two

has the 'drbd0' virtual hard drive plugged in gets to use 'drbd0' as the 'real'

hard drive underneath a second virtual hard drive, called 'drbd10', which is

shared with the new server ('theo'). Also see the picture below.

If linus would malfunction, we could attach drbd0 (the blue virtual hard drive)

on monty and keep gitlab.com going. The 'green' replication (to get the data to

theo) would also be able to continue, even after a failover to monty.

Networking

I liked the picture above, so 'all' I had to do was set it up. That ended up

taking a few days, just to set up a test environment, and to figure out how to

create a network tunnel for the green traffic. The network tunnel needed to

have a movable endpoint depending on whether linus or monty was primary. We

also needed the tunnel because DRBD is not compatible with the [Network Address

Translation](http://en.wikipedia.org/wiki/Network_address_translation) used by

AWS. DRBD assumes that whenever a node listens on an IP address, it is also

reachable for its partner node at that IP address. On AWS on the other hand, a

node will have one or more internal IP addresses, which are distinct from its

public IP address.

We chose to work around this with an [IPIP

tunnel](http://en.wikipedia.org/wiki/IP_in_IP) and manually keyed IPsec

encryption. Previous experiments indicated that this gave us the best network

throughput compared to OpenVPN and GRE tunnels.

To set up the tunnel I used a shell script that was kept in sync on all three

servers involved in the migration by Chef.

# Network tunnel configuration script used by GitLab B.V. to migrate data
from

# Delft to Frankfurt


#!/bin/sh

set -u


PATH=/usr/sbin:/sbin:/usr/bin:/bin


frankfurt_public=54.93.71.23

frankfurt_replication=172.16.228.2

test_public=54.152.127.180

test_replication=172.16.228.1

delft_public=62.204.93.103

delft_replication=172.16.228.1


create_tunipip() {
  if ! ip tunnel show | grep -q tunIPIP ; then
    echo Creating tunnel tunIPIP
    ip tunnel add tunIPIP mode ipip ttl 64 local "$1" remote "$2"
  fi
}


add_tunnel_address() {
  if ! ip address show tunIPIP | grep -q "$1" ; then
    ip address add "$1/32" peer "$2/32" dev tunIPIP
  fi
}


case $(hostname) in
  ip-10-0-2-9)
    create_tunipip 10.0.2.140 "${frankfurt_public}"
    add_tunnel_address "${test_replication}" "${frankfurt_replication}"
    ip link set tunIPIP up
    ;;
  ip-10-0-2-245)
    create_tunipip 10.0.2.11 "${frankfurt_public}"
    add_tunnel_address "${test_replication}" "${frankfurt_replication}"
    ip link set tunIPIP up
    ;;
  ip-10-1-0-52|theo.gitlab.com)
    create_tunipip 10.1.0.52 "${delft_public}"
    add_tunnel_address "${frankfurt_replication}" "${delft_replication}"
    ip link set tunIPIP up
    ;;
  linus|monty)
    create_tunipip "${delft_public}" "${frankfurt_public}"
    add_tunnel_address "${delft_replication}" "${frankfurt_replication}"
    ip link set tunIPIP up
    ;;
esac

This script was configured to run on boot. Note that it covers our Delft nodes

(linus and monty, then current production), the node we were migrating to in

Frankfurt (theo), and two AWS test nodes that were part of a staging setup. We

chose the AWS Frankfurt (Germany) data center because of its geographic

proximity to Delft (The Netherlands).

We configured IPsec with /etc/ipsec-tools.conf. An example for the 'origin'

configuration would be:

#!/usr/sbin/setkey -f


# Configuration for 172.16.228.1


# Flush the SAD and SPD

flush;

spdflush;


# Attention: Use this keys only for testing purposes!

# Generate your own keys!


# AH SAs using 128 bit long keys

# Fill in your keys below!

add 172.16.228.1 172.16.228.2 ah 0x200 -A hmac-md5 0xfoobar;

add 172.16.228.2 172.16.228.1 ah 0x300 -A hmac-md5 0xbarbaz;


# ESP SAs using 192 bit long keys (168 + 24 parity)

# Fill in your keys below!

add 172.16.228.1 172.16.228.2 esp 0x201 -E 3des-cbc 0xquxfoo;

add 172.16.228.2 172.16.228.1 esp 0x301 -E 3des-cbc 0xbazqux;


# Security policies

# outbound traffic from 172.16.228.1 to 172.16.228.2

spdadd 172.16.228.1 172.16.228.2 any -P out ipsec esp/transport//require
ah/transport//require;


# inbound traffic from 172.16.228.2 to 172.16.228.1

spdadd 172.16.228.2 172.16.228.1 any -P in ipsec esp/transport//require
ah/transport//require;

Getting the networking to this point took quite some work. For starters, we did

not have a staging environment similar enough to our production environment, so

I had to create one for this occasion.

On top of that, to model our production setup, I had to use an AWS 'Virtual

Private Cloud', which was new technology for us. It took a while before I

found some [vital information about using multiple IP

addresses](http://engineering.silk.co/post/31923247961/multiple-ip-addresses-on-amazon-ec2)

that was not obvious from the AWS documentation: if you want to have two public

IP addresses on an AWS VPC node, you need to put two corresponding private IP

addresses on one 'Elastic Network Interface', instead of creating two network

interfaces with one private IP each.

Configuring three-way DRBD replication

With the basic networking figured out the next thing I had to do was to adapt

our production failover script so that we maintain redundancy while migrating

the data. 'Failover' is a procedure where you move a service (gitlab.com) ove

to a different computer after a failure. Our failover procedure is managed by a

script. My goal was to make sure that if one of our production servers failed,

any teammate of mine on pager duty would be able to restore the gitlab.com

service using our normal failover procedure. That meant I had to update the

script to use the new three-way DRBD configuration.

I certainly got a little more familiar with tcpdump (`tcpdump -n -i

INTERFACE`), having multiple layers of firewalls

(UFW and AWS [Security

Groups](http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/using-network-security.html)),

and how to get any useful log messages from DRBD:

# Monitor DRBD log messages

sudo tail -f /var/log/messages | grep -e drbd -e d-con

I later learned that I actually deployed a new version of the failover script

with a bug in it that potentially could have confused the hell out of my

teammates had they had to use it under duress. Luckily we never actually needed

the failover procedure during the time the new script was in production.

But, even though I was introducing new complexity and hence bugs into our

failover tooling, I did manage to learn and try out enough things to bring this

project to a successful conclusion.

Enabling the DRBD replication

This part was relatively easy. I just had to grow the DRBD block device

'drbd0' so that it could accommodate the new stacked (inner) block device

'drbd10' without having to shrink our production filesystem. Because drbd0 was

backed by LVM and we had some space left this was a matter of invoking

lvextend and drbdadm resize on both our production nodes.

The step after this was the first one where I had to take gitlab.com offline.

In order to 'activate' drbd10 and start the synchronization, I had to unmount

/dev/drbd0 from /var/opt/gitlab and mount /dev/drbd10 in its place. This

took less than 5 minutes. After this the actual migration was under way!

Too slow

At this point I was briefly excited to be able to share some good news with the

rest of the team. While staring about the DRBD progress bar for the

synchronization I started to realize however that the progress bar was telling

me that the synchronization would take about 50-60 days at 2MB/s.

This prognosis was an improvement over what we would expect based on our

previous experience moving 1.8TB from North Virginia (US) to Delft (NL) in

about two weeks (across the Atlantic Ocean!). If one would extrapolate that

rate you would expect moving 9TB to take 70 days. We were disappointed

nonetheless because we were hoping that we would gain more throughput by moving

over a shorter distance this time around (Delft and Frankfurt are about 400km

apart).

The first thing I started looking into at this point was whether we could

somehow make better use of the network bandwidth at our disposal. Sending fake

data (zeroes) over the (encrypted) IPIP tunnel (`dd if=/dev/zero | nc remote_ip

1234`) we could get about 17 MB/s. By disabling IPsec (not really an option as

far as I am concerned) we could increase that number to 40 MB/s.

The only conclusion I could come to was that we were not reaching our maximum

bandwidth potential, but that I had no clue how to coax more speed out of the

DRBD sync. Luckily I recalled reading about another magical DRBD feature.

Bring out the truck

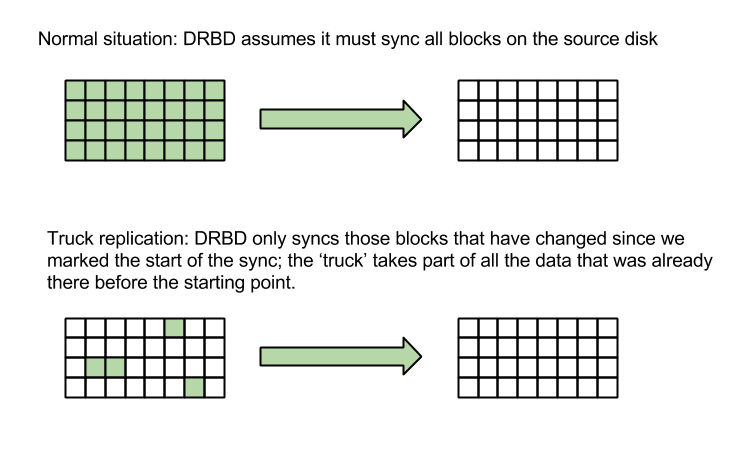

The solution suggested by the DRBD documentation for situations like ours is

called ['truck based

replication](https://drbd.linbit.com/users-guide/s-using-truck-based-replication.html).

Instead of synchronizing 9TB of data, we would be telling DRBD to mark a point

in time, take a full disk snapshot, move the snapshot to the new location (as a

box full of hard drives in a truck if needed), and then tell DRBD to get the

data at the new location up to date. During that 'catching-up' sync, DRBD would

only be resending those parts of the disk that actually changed since we marked

the point in time earlier. Because our users would not have written 9TB of new

data while the 'disks' were being shipped, we would have to sync much less than

9TB.

In our case I would not have to use an actual truck; while testing the network

throughput between our old and new server I found that I could stream zeroes

through SSH at about 35MB/s.

dd if=/dev/zero bs=1M count=100 | ssh theo.gitlab.com dd of=/dev/null

After doing some testing with the leftover two-node staging setup I built

earlier to figure out the networking I felt I could make this work. I followed

the steps in the DRBD documentation, made an LVM snapshot on the active origin

server, and started sending the snapshot to the new server with the following

script.

#!/bin/sh

block_count=100

block_size='8M'

remote='54.93.71.23'


send_blocks() {
  for skip in $(seq $1 ${block_count} $2) ; do
    echo "${skip}   $(date)"
    sudo dd if=/dev/gitlab_vg/truck bs=${block_size} count=${block_count} skip=${skip} status=noxfer iflag=fullblock \
    | ssh -T ${remote} sudo dd of=/dev/gitlab_vg/gitlab_com bs=${block_size} count=${block_count} seek=${skip} status=none iflag=fullblock
  done
}


check_blocks() {
  for skip in $(seq $2 ${block_count} $3) ; do
    printf "${skip}   "
    sudo dd if=$1 bs=${block_size} count=${block_count} skip=${skip} iflag=fullblock | md5sum
  done
}


case $1 in
  send)
    send_blocks $2 $3
    ;;
  check)
    check_blocks $2 $3 $4
    ;;
  *)
    echo "Usage: $0 (send START END) | (check BLOCK_DEVICE START END)"
    exit 127
esac

By running this script in a screen

session I was able to copy the LVM snapshot /dev/gitlab_vg/truck from the old

server to the new server in about 3.5 days, 800 MB at a time. The 800MB number

was a bit of a coincidence, stemming from the recommendation from our Dutch

hosters NetCompany to use 8MB dd-blocks. Also

coincidentally, the total disk size was divisible by 8MB. If you have an eye

for system security you might notice that the script needed both root

privileges on the source server, and via short-lived unattended SSH sessions

into the remote server (| ssh sudo ...). This is not a normal thing for us to

do, and my colleagues got spammed by warning messages about it while this

migration was in progress.

Because I am a little paranoid, I was running a second instance of this script

in parallel with the sync, where I was calculating MD5 checksums of all the

blocks that were being sent across the network. By calculating the same

checksums on the migration target I could gain sufficient confidence that all

data made across without errors. If there would have been any, the script would

have made it easy to re-send an individual 800MB block.

At this point my spirits were lifting again and I told my teammates we would

probably need one extra day after the 'truck' stage before we could start using

the new server. I did not know yet that 'one day' would become 'one week'.

Shipping too much data

After moving the big snapshot across the network with

dd and SSH, the next step would

be to 'just turn DRBD on and let it catch up'. But that did not work all of a

sudden! It took me a while to realize that the problem was that while trucking,

I had sent too much data to the new server (theo). If you recall the picture

I drew earlier of the three-way DRBD replication then you can see that the goal

was to replicate the 'green box' from the old servers to the new server, while

letting the old servers keep sharing the 'blue box' for redundancy.

![Blue box on the left, green box on the

right](https://about.gitlab.com/images/drbd/drbd-too-much-data.png)

But I had just sent a snapshot of the blue box to theo (the server on the

right), not just the green box. DRBD was refusing to turn back on theo,

because it was expecting the green box, not the blue box (containing the green

box). More precisely, my disk on the new server contained metadata for drbd0 as

well as drbd10. DRBD finds its metadata by starting at the end of the disk and

walking backwards. Because of that, it was not seeing the drbd10 (green)

metadata on theo.

The first thing I tried was to shrink the disk (with

LVM) so that

the blue block at the end would fall off. Unfortunately, you can only grow and

shrink LVM disks in fixed steps (4MB steps in our case), and those steps did

not align with where the drbd10 metadata (green box) ended on disk.

The next thing I tried was to erase the blue block. That would leave DRBD

unable to find any metadata, because DRBD metadata must sit at the end of the

disk. To cope with that I tried and trick DRBD into thinking it was in the

middle of a disk resize operation. By manually creating a doctored

/var/lib/drbd/drbd-minor-10.lkbd file used by DRBD when it does a

(legitimate) disk resize, I was pointing it to where I thought it could find

the green block of drbd10 metadata. To be honest this required more disk sector

arithmetic than I was comfortable with. Comfortable or not, I never got this

procedure to work without a few screens full of scary DRBD error messages so I

decided to call our first truck expedition a bust.

One last try

We had just spent four days waiting for a 9TB chunk of data to be transported

to our new server only to find out that it was getting rejected by DRBD. The

only option that seemed left to us was to sit back and wait 50-60 days for a

regular DRBD sync to happen. There was just this one last thing I wanted to try

before giving up. The stumbling block at this point was getting DRBD on theo to

find the metadata for the drbd10 disk. From reading the documentation, I knew

that DRBD has metadata export and import commands. What if we would take a new

LVM snapshot in Delft, take the disk offline and export its metadata, and then

on the other hand do a metadata import with the proper DRBD import command

(instead of me writing zeroes to the disk and lying to DRBD about being in the

middle of a resize). This would require us to redo the truck dance and wait

four days, but four days was still better than 50 days.

Using the staging setup I built at the start of this process (a good time

investment!) I created a setup that allowed me to test three-way replication

and truck-based replication at the same time. Without having to do any

arithmetic I came up with an intimidating but reliable sequence of commands to

(1) initiate truck based replication and (2) export the DRBD metadata.

sudo lvremove -f gitlab_vg/truck

## clear the bitmap to mark the sync point in time

sudo drbdadm disconnect --stacked gitlab_data-stacked

sudo drbdadm new-current-uuid --clear-bitmap --stacked gitlab_data-stacked/0

## create a metadata dump

echo Yes | sudo gitlab-drbd slave

sudo drbdadm primary gitlab_data

sudo drbdadm apply-al --stacked gitlab_data-stacked

sudo drbdadm dump-md --stacked gitlab_data-stacked > stacked-md-$(date
+%s).txt

## Create a block device snapshot

sudo lvcreate -n truck -s --extents 50%FREE gitlab_vg/drbd

## Turn gitlab back on

echo Yes |sudo gitlab-drbd slave

echo Yes |sudo gitlab-drbd master

## Make sure the current node will 'win' as primary later on

sudo drbdadm new-current-uuid --stacked gitlab_data-stacked/0

This time I needed to take gitlab.com offline for a few minutes to be able to

do the metadata export. After that, a second waiting period of 4 days of

streaming the disk snapshot with dd and ssh commenced. And then came the

big moment of turning DRBD back on theo. It worked! Now I just had to wait

for the changes on disk of the last four days to be replicated (which took

about a day) and we were ready to flip the big switch, update the DNS and start

serving gitlab.com from AWS. That final transition took another 10 minutes of

downtime, and then we were done.

Looking back

As soon as we flipped the switch and started operating out of AWS/Frankfurt,

gitlab.com became noticeably more responsive. This is in spite of the fact that

we are still running on a single server (an [AWS

c3.8xlarge](http://aws.amazon.com/ec2/instance-types/#c3) instance at the

moment).

Counting from the moment I was tasked to work on this data migration, we were

able to move a 9TB filesystem to a different data center and hosting provider

in three weeks, requiring 20 minutes of total downtime (spread over three

maintenance windows). We took an operational risk of prolonged downtime due to

operator confusion in case of incidents, by deploying a new configuration that

while tested to some degree was understood by only one member of the operations

team (myself). We were lucky that there was no incident during those three

weeks that made this lack of shared knowledge a problem.

Now if you will excuse me I have to go and explain to my colleagues how our

new gitlab.com infrastructure on AWS is set up. :)
