How to secure your Kubernetes pods using GitLab Container Network Security

We help you get started with securing your Kubernetes cluster using Cilium, a GitLab-managed application.

Kubernetes does not come secure out of the box. There is a lot of configuration needed

to achieve a secure cluster. One important security configuration to consider is how pods

communicate with each other. This is where Network Policies come into play, making sure that

your pods are not exchanging data with unknown or malicious sources, which can compromise

your cluster.

Network Policies are rules on how pods can communicate

with other pods as well as endpoints. They are pretty much a firewall for your internal cluster network.

GitLab provides Container Network Security using Cilium as a GitLab-managed application.

Cilium is a CNI network plugin for Kubernetes that can be used to implement support for Network Policies.

The video below provides an introduction on how to easily implement Network Policies from GitLab,

as well as a demo on testing Network Policies:

Network Policies in action

There are many different ways of configuring Network Policies within your Kubernetes cluster. You can configure

the ingress from as well as the egress to traffic. There are four kinds of selectors

which can be used to configure traffic between pods:

  • podSelector: Selects provided pods in the same namespace

  • namespaceSelector: Selects all pods on given namespace

  • podSelector & namespaceSelector: Selects provided pods in given namespace

  • ipBlock: Blocks external IP CIDR ranges provided

More information on the behavior of "to" and "from" selectors can be found in the Kubernetes documentation.

Below is an example of a Network Policy that only allows ingress traffic

to pod with label app: "notes" from pods with label access: "true".


apiVersion: networking.k8s.io/v1

kind: NetworkPolicy

metadata:
  name: access-notes
spec:
  podSelector:
    matchLabels:
      app: "notes"
  ingress:
  - from:
    - podSelector:
        matchLabels:
          access: "true"

Installing Cilium as a GitLab-managed application

Cilium is provided by GitLab as a managed application, meaning

that GitLab installs and upgrades Cilium for you. There is no need

to worry about how to get Cilium up and running. Cilium as well as your Network

Policies can be configured as needed.

In order to install and configure Cilium as a GitLab managed application, you can follow the steps provided in

the GitLab cluster applications documentation.

This sample project Simply Simple Notes, is configured to use Cilium. It will install Cilium on the Kubernetes cluster associated with the project.

This guide can be used to test your Network Policies once Cilium has been installed.

Threat monitoring dashboard

By default Cilium installs with Hubble, a monitoring daemon which collects packet flow metrics per namespace. These

metrics are sent to the GitLab Threat Monitoring dashboard.

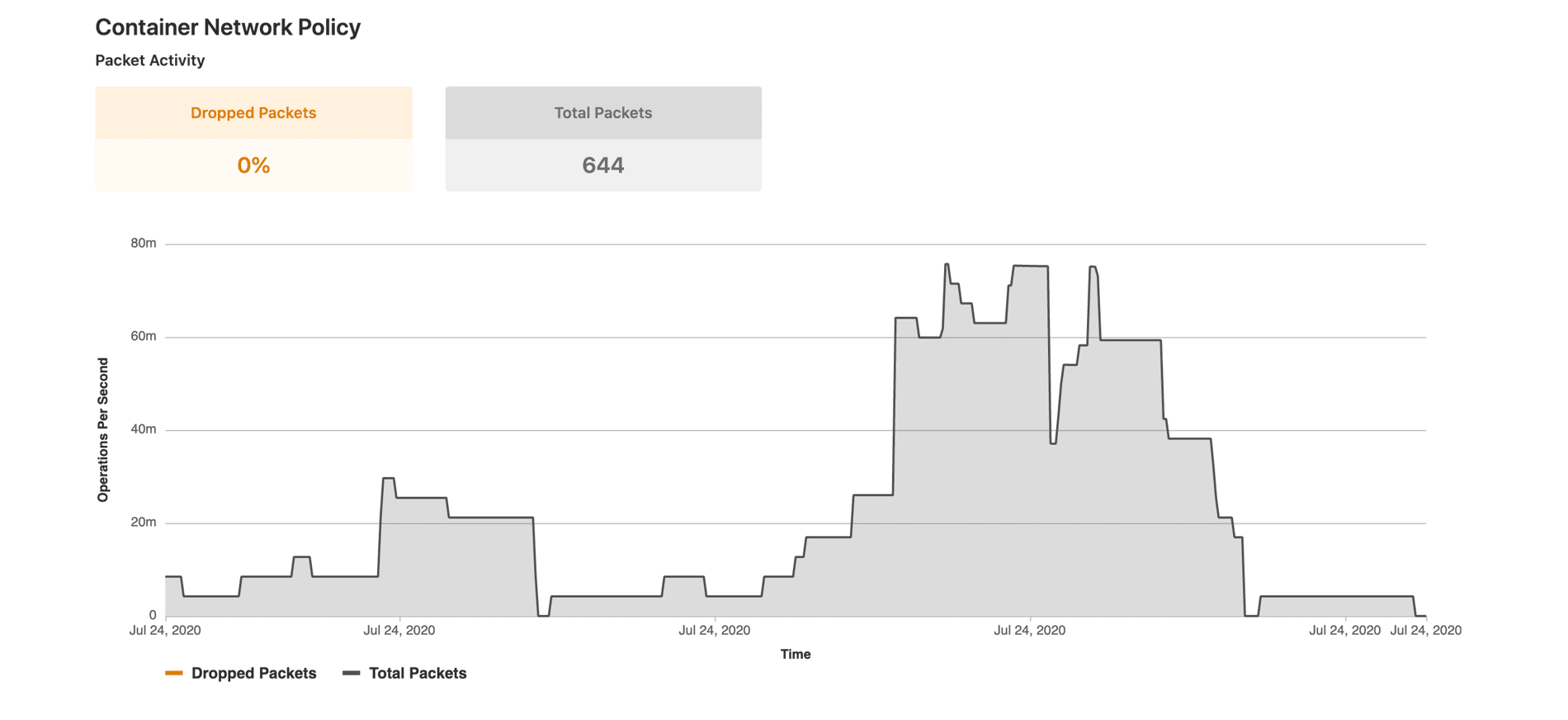

threat monitoring packet
metrics

Packet Metrics displayed in the Threat Management dashboard

The packet flow metrics collected are:

  • The total number of inbound and outbound packets for the given time period

  • The proportion of packets dropped according to the configured policies

  • The average rate per-second of forwarded and dropped packets for the requested time interval

Within the Threat Monitoring dashboard, you can also view and configure the Network Policies in your project. This makes it easy to navigate

your container network configuration in one interface.

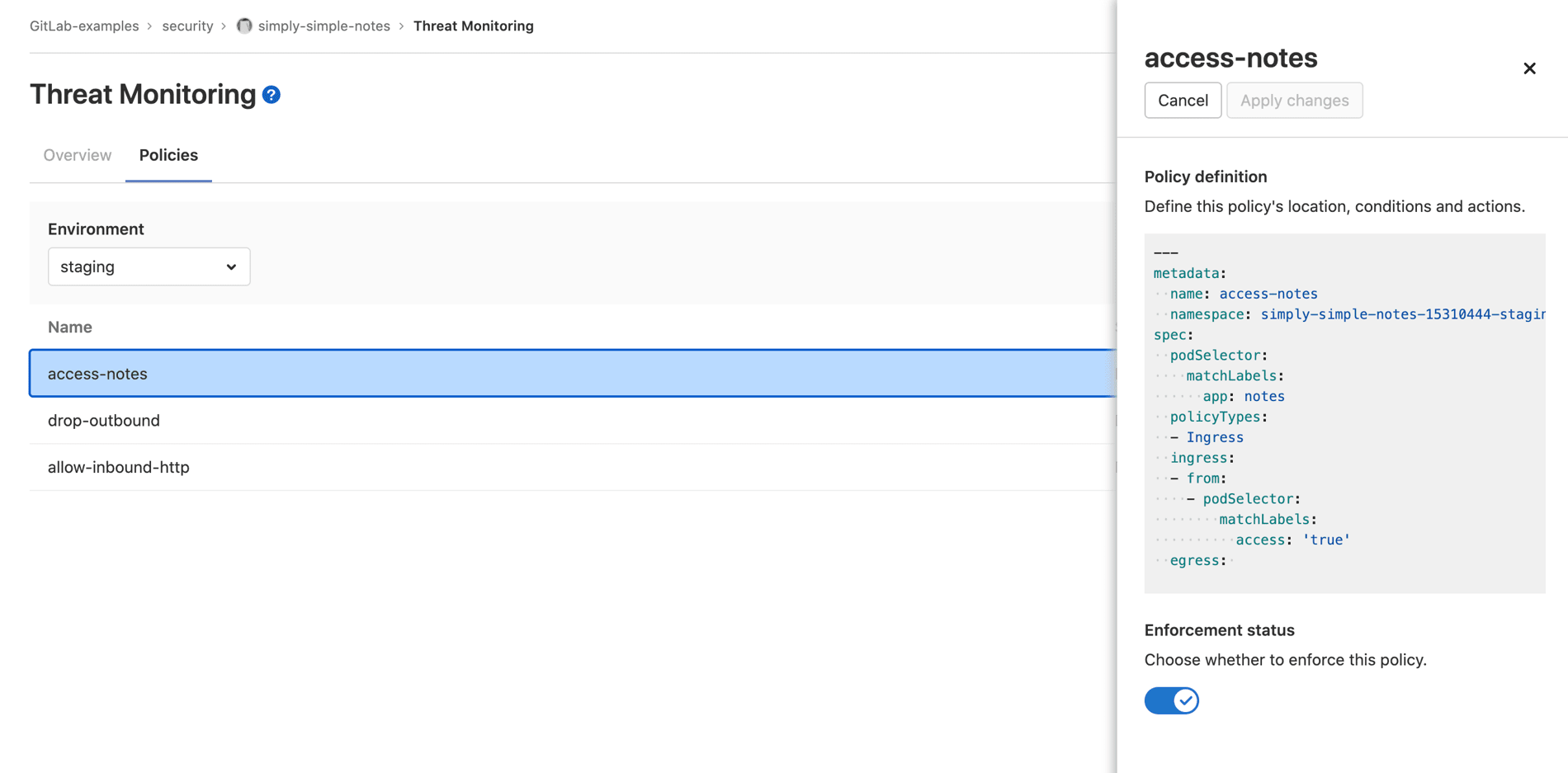

threat monitoring Network
Policies

Network Policies displayed in the Threat Management dashboard

Network Policies can also be created and edited through an intuitive UI. You can just select the network rules you wish to use and the YAML will be automatically created and applied to your cluster. This eliminates the need to edit the complicated YAML structure for Network Policies directly, and allows you to make sure the correct rules are being applied without confusion.

Network Rules can be created using the following rule types:

  • Labels

  • Entities

  • IP/CIDR

  • DNS

  • Level 4

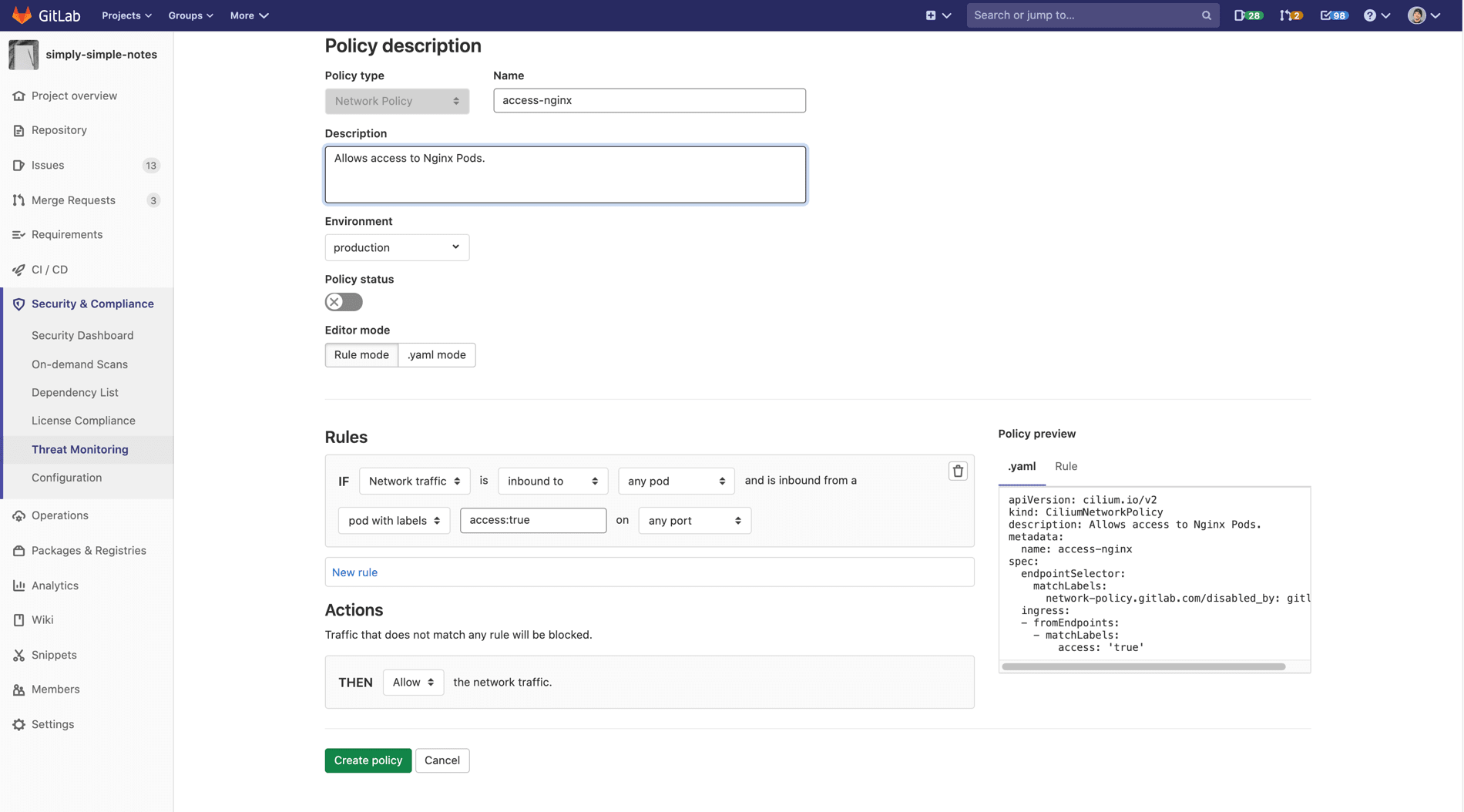

threat monitoring policy
creation

Policy being created in the Threat Management dashboard

Learn more about GitLab Security

I hope this blog can help get you started with Network Policies in Kubernetes. Check out some other

ways GitLab can help with security.

Cover image by Diane Helentjaris on Unsplash
